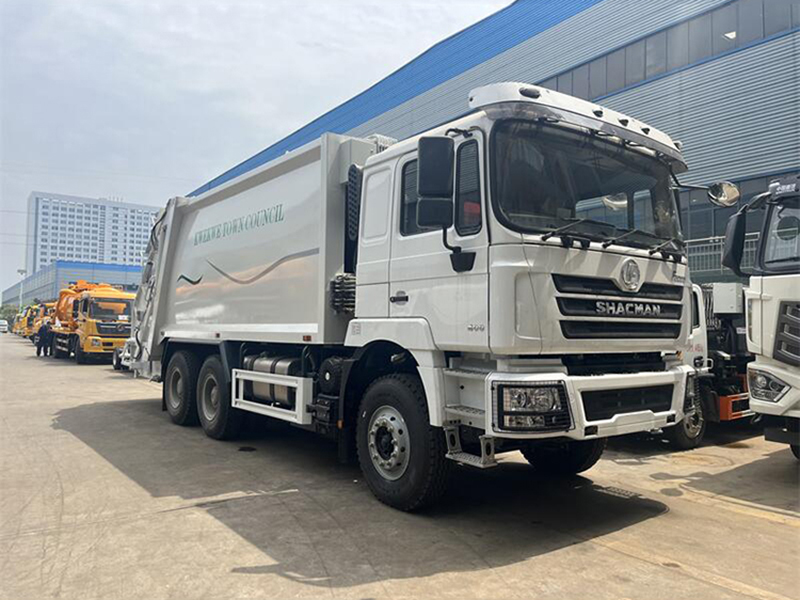

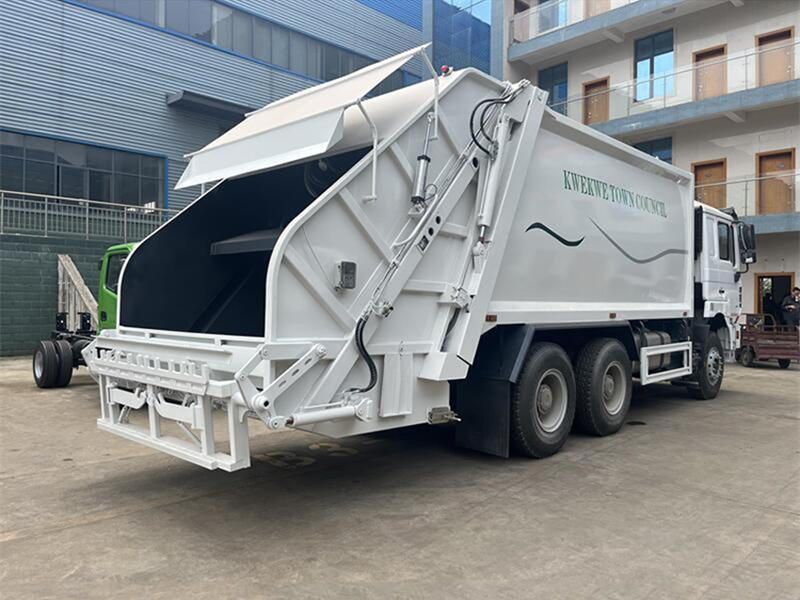

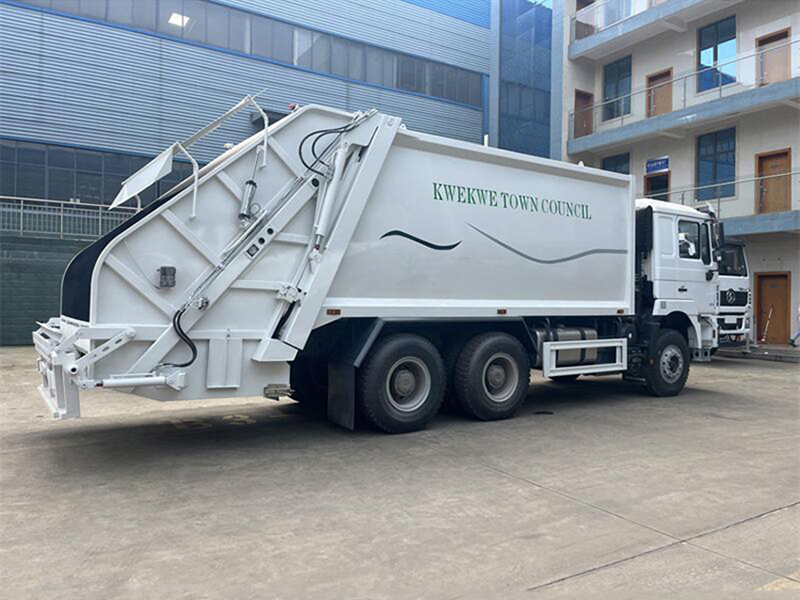

20CBM Shacman F3000 Garbage Compactor Truck
![[pics:title]](https://clwtrucksgroup.com/static/upload/image/20251009/1760020420605328.jpg)
![[pics:title]](https://clwtrucksgroup.com/static/upload/image/20251009/1760020420844761.jpg)
![[pics:title]](https://clwtrucksgroup.com/static/upload/image/20251009/1760020421398743.jpg)
![[pics:title]](https://clwtrucksgroup.com/static/upload/image/20251009/1760020421462377.jpg)
![[pics:title]](/static/upload/image/20251009/1760020420605328.jpg)
![[pics:title]](/static/upload/image/20251009/1760020420844761.jpg)
![[pics:title]](/static/upload/image/20251009/1760020421398743.jpg)
![[pics:title]](/static/upload/image/20251009/1760020421462377.jpg)
Superstructure configuration:
1. The box body is made of Q345 manganese steel high-strength plate, with four sides and five bottoms. The top, bottom and filler of the box body are made of thickened steel plates, which are corrosion-resistant and have a long service life. It is treated with three layers of spray paint.
2. The centralized electronic control system in the cockpit and outside the vehicle body is connected to the same CAN bus control system. The loading cycle time does not exceed 12 seconds. The waste discharge time is ≤ 40 seconds. The tilting angle of the tilting rack is ≥ 55°, and the bidirectional peristaltic compression ratio is 1:5.
3. Domestic well-known brand hydraulic systems (Anhui Wanye Pump, Sino-US multi-way valve, Hengli customized cylinder, Zhejiang Jiashan Power Takeoff), all series are standard equipped with a clamping valve (back pressure valve).

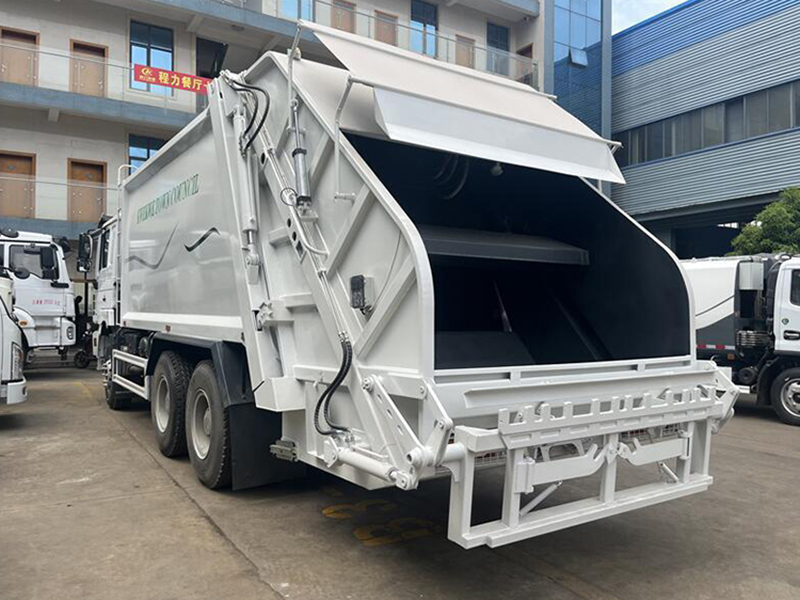

4. The new scraper slide connecting shaft is made of high-manganese wear-resistant steel for durability and no breakage. The feed hopper is elevated and enlarged to prevent waste from falling to the ground. The bucket suspension mechanism features rounded suspension teeth that prevent damage to the bucket rim, and a cushioning pad that prevents pressure on the bucket, preventing damage. It can simultaneously suspend both 120-liter and 240-liter buckets.
5. Equipped with night lighting, double sewage tanks, sewage tank drain ball valve and cleaning port, additional drain pipe to prevent splashing, humanized design, high-position outline lights/side lights/operating lights on the body.
Specification:
| Chassis | Chassis brand | HOWO | ||||
| Chassis model | SHS5285 | |||||
| Overall dimension(L*W*H) | 10050x2550x3450mm | |||||
| Drive modle | 6X4 left hand drive/right hand drive | |||||
| Front axle | 6.5ton loading capacity | |||||
| Rear axle | 10+10ton loading capacity | |||||
| Wheel Base | 4600+1350mm | |||||
| Tyre size & number | 12.00R20 | |||||
| Max speed | 105km/h | |||||
| Engine | Model | weichai340 | ||||
| Engine Type | 6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,4- valve,diesel engine | |||||
| Horse power | 340hp | |||||
| Displacement | 8600ml | |||||
| Emission | Euro 2/5 | |||||
| Garbage tank | Volume of compartment | 20cbm | ||||
| Thickness | Side :5mm ; Bottom:5mm | |||||
| Material | Carbon steel,inner epoxy anticorrosive | |||||
| Electric system | CAN electric automatic control | |||||
| Function | Seal garbage truck is formed of garbage box, hydraulic system, operation system. Sewage will be put into totally the sewage box during self-compress and self-dump. With one Bucket. The rear bucket can be according to your requests. | |||||
Q1:Could your company manufacture products based on my requests?
A:Yes. With our R&D team, Chengli is specialized in engineering and making specialized vehicles. We can provide any products according to your demands, like the volume, painting, size, logo, the engine, and even the chassis.
Q2:What's your quality guanrantee?
A:We are a government-certified enterprise recognized by China's Ministry of Industry and Information Technology (MIIT), we have passed the ISO, CCC, SGS. We also hold export qualifications.
Q3. What are your main products?
A: Fire and emergency response vehicles, tanker trucks, refrigerated trucks, sanitation trucks, garbage truck, sprinkler truck, boom truck, wrecker trucks and so on. The annual production capacity is exceeding 8,000 units.
Q4. Are you a factory or trading company?
A: Chengli a the original factory, not a middleman or agent.
Q5. What are your terms of payment? What is your terms of delivery?
A: Generally speaking, 30% T/T deposit in advance. Terms are EXW, FOB, CFR, CIF.
Q6. How about your delivery time?
A: 10 to 25 days after receiving your advance payment. It also depends on the items and the quantity.
Q7. What is the price of your product?
A: We are the direct factory, so the price can be competitive. Visit our company and let us enjoy a tea to further talk about the price!
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9.What is the warranty period for your products?
A:The warranty period of export vehicles can be 12 months, based on the order.
Q10.Do your special vehicles comply with national/regional safety standards and emission regulations?
A:Yes.
Q11.What after-sales services do you provide?
A:We provide comprehensive after-sales services, including free parts, maintenance, repairs, technical support, and on-line tech support.
Q12:Can you make OEM or ODM?
A:Yes, we welcome the importer and wholesaler from worldwide for OEM and ODM business.
Q13:Where is your factory located? How can I visit there?
A:The address is at the intersection of Xingguang Road 1 and National Highway 316 in Zengdu Economic and Technological Development Zone, Suizhou City, Hubei Province, China. We will pick you up at Wuhan Airport.
