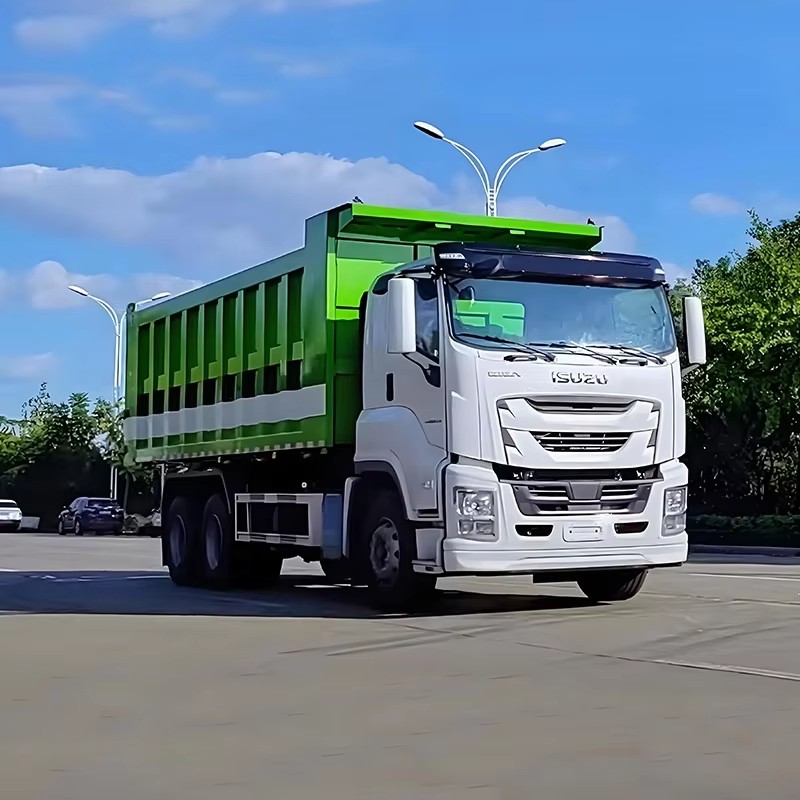

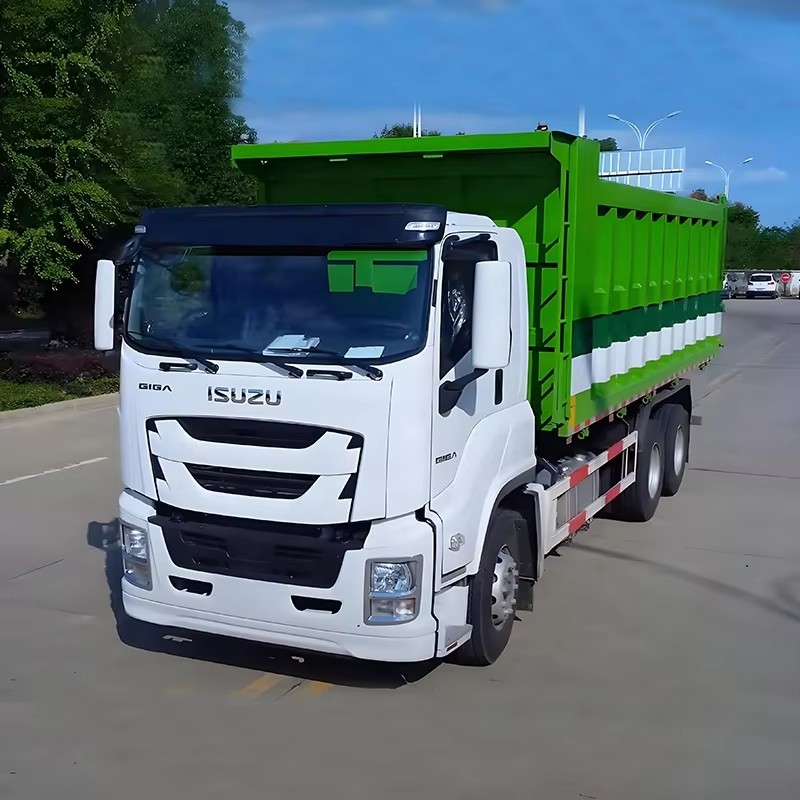

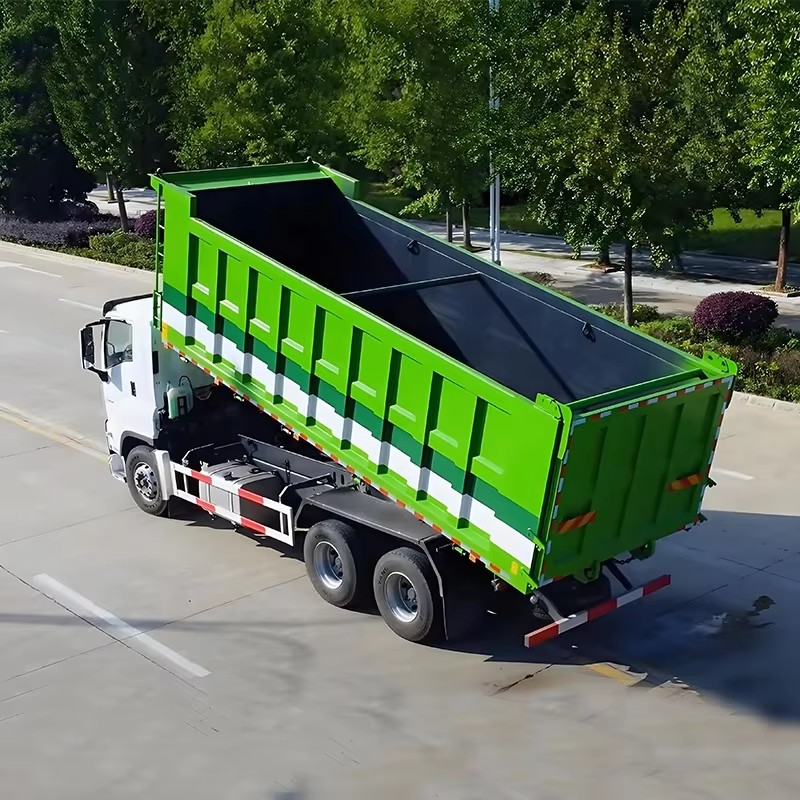

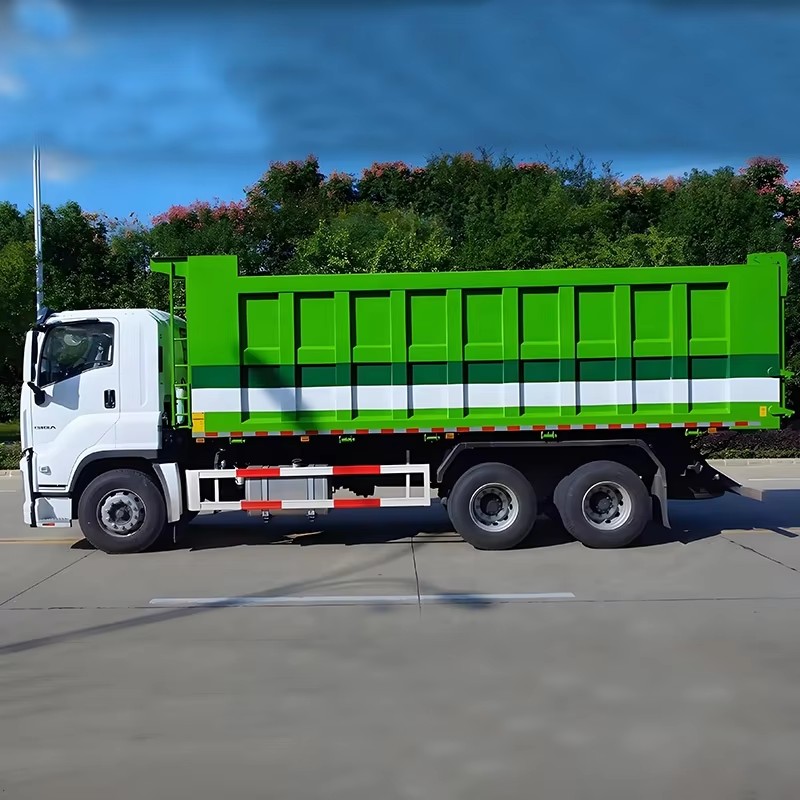

1SUZU GIGA 20Ton 30Ton Hydraulic Lifting Tipper Truck 6x4 Dumper Truck for Road Construction
![[pics:title]](https://clwtrucksgroup.com/static/upload/image/20251024/1761292807231759.jpg)
![[pics:title]](https://clwtrucksgroup.com/static/upload/image/20251024/1761292807734132.jpg)
![[pics:title]](https://clwtrucksgroup.com/static/upload/image/20251024/1761292807575142.jpg)
![[pics:title]](https://clwtrucksgroup.com/static/upload/image/20251024/1761292807471377.jpg)
![[pics:title]](/static/upload/image/20251024/1761292807231759.jpg)
![[pics:title]](/static/upload/image/20251024/1761292807734132.jpg)
![[pics:title]](/static/upload/image/20251024/1761292807575142.jpg)
![[pics:title]](/static/upload/image/20251024/1761292807471377.jpg)
Vehicle Technical Parameters | ||
Product Name | Dump Truck | |
Overall Dimensions(mm) | 8585x2550x3650 | |
Curb Weight(Kg) | 12500 | |
Loading Capacity(Kg) | 12370 | |
Total Mass(Kg) | 25000 | |
Cargo Tank Dimension（mm） | 5600x2350x1500 | |
Cargo Tank Volume(m³) | 20 | |
Tank Body Material | carbon Steel | |
Cargo Tank thickness（mm） | Side 6 Bottom 8 | |
Cargo Tank Lifting Method | Hydraulic Cylinder Lifting | |
Number of Cylinders（pcs） | 1 | |
Cylinder Position | Girder Front/Middle | |
Cylinder Diameter（mm） | 180 | |
Door Position | Rear/Side/Top | |
Chassis Technical Parameters | ||
Chassis Brand | 1SUZU | |
Drive Form | 6*4 | |
Steering Wheel | Left Hand Drive | |
Steering Device | Power Assisted Steering | |
Wheelbase(mm) | 4100+1350 | |
Engine Brand and Model | Weichai Power/WP12.400E50 | |
Max Engine Power(Kw) | 294 | |
Engine Displacement(ml) | 11600 | |
Engine Emission Standard | Euro 6 | |
Number of Engine Cylinders | 6 | |
Fuel Type | Diesel | |
Gearbox | 12 Speed Forward 1 Reverse | |
Front/Rear Axle(t) | 7/7/18 | |
Suspension | Multi Leaf Springs | |
Brake System | Front/Rear Drum Full Air Braking | |
Wheels and Tyre Size | 12+1/( 12.00R20LT) | |
Cab Configuration | Single Row Cab, Air Conditioning, Radio, MP3 and USB Port | |
Rated Voltage | 24V,DC | |
Cab Color | White,other color is optional | |
Q1:Could your company manufacture products based on my requests?
A:Yes. With our R&D team, Chengli is specialized in engineering and making specialized vehicles. We can provide any products according to your demands, like the volume, painting, size, logo, the engine, and even the chassis.
Q2:What's your quality guanrantee?
A:We are a government-certified enterprise recognized by China's Ministry of Industry and Information Technology (MIIT), we have passed the ISO, CCC, SGS. We also hold export qualifications.
Q3. What are your main products?
A: Fire and emergency response vehicles, tanker trucks, refrigerated trucks, sanitation trucks, garbage truck, sprinkler truck, boom truck, wrecker trucks and so on. The annual production capacity is exceeding 8,000 units.
Q4. Are you a factory or trading company?
A: Chengli a the original factory, not a middleman or agent.
Q5. What are your terms of payment? What is your terms of delivery?
A: Generally speaking, 30% T/T deposit in advance. Terms are EXW, FOB, CFR, CIF.
Q6. How about your delivery time?
A: 10 to 25 days after receiving your advance payment. It also depends on the items and the quantity.
Q7. What is the price of your product?
A: We are the direct factory, so the price can be competitive. Visit our company and let us enjoy a tea to further talk about the price!
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9.What is the warranty period for your products?
A:The warranty period of export vehicles can be 12 months, based on the order.
Q10.Do your special vehicles comply with national/regional safety standards and emission regulations?
A:Yes.
Q11.What after-sales services do you provide?
A:We provide comprehensive after-sales services, including free parts, maintenance, repairs, technical support, and on-line tech support.
Q12:Can you make OEM or ODM?
A:Yes, we welcome the importer and wholesaler from worldwide for OEM and ODM business.
Q13:Where is your factory located? How can I visit there?
A:The address is at the intersection of Xingguang Road 1 and National Highway 316 in Zengdu Economic and Technological Development Zone, Suizhou City, Hubei Province, China. We will pick you up at Wuhan Airport.
