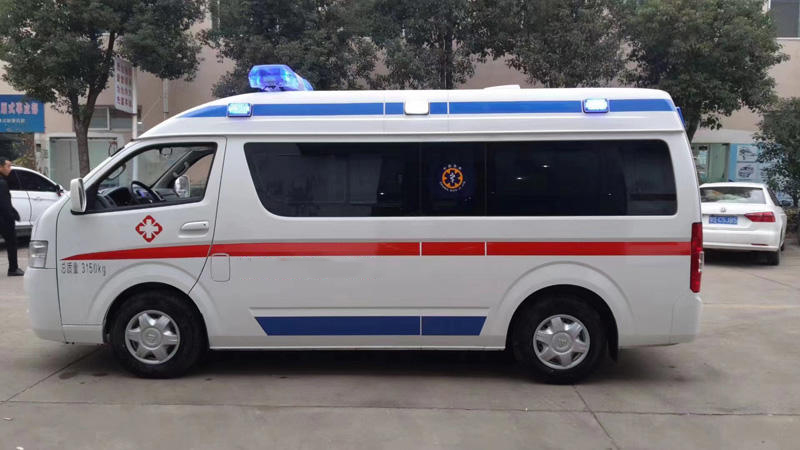

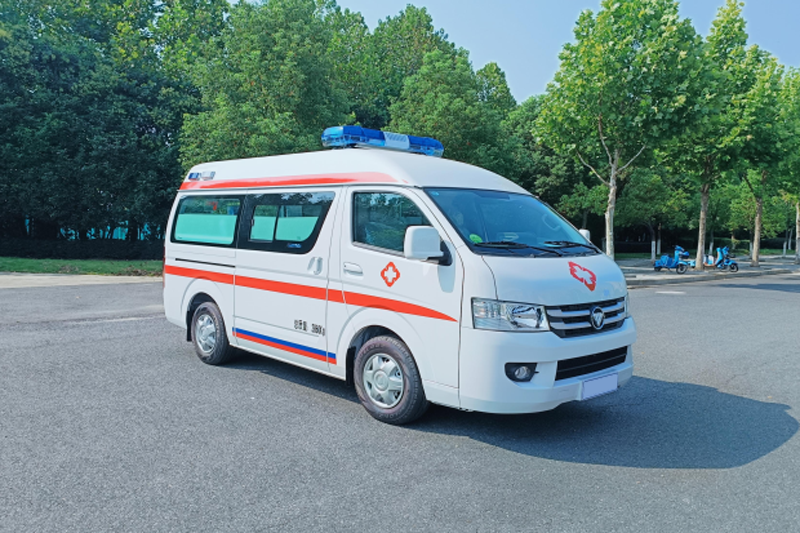

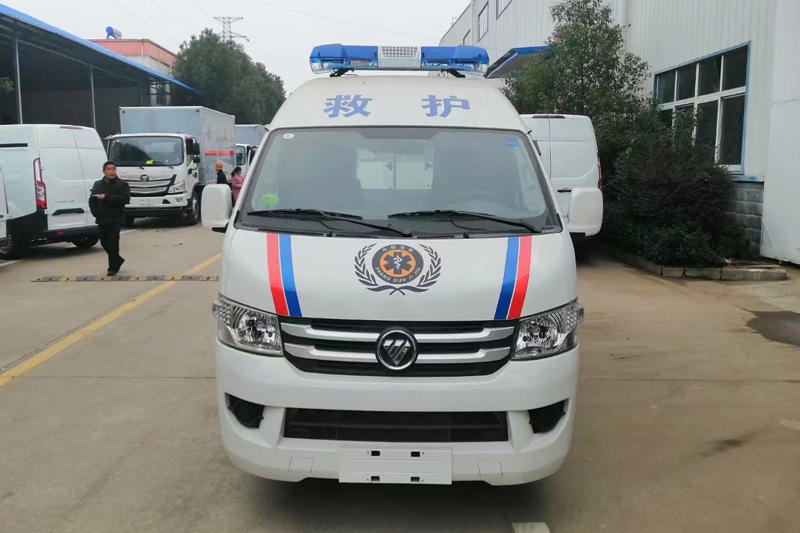

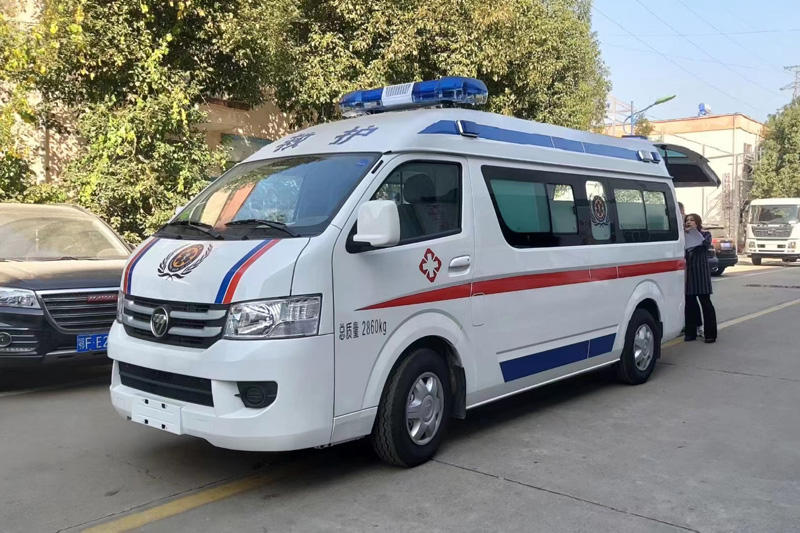

Foton Negative Pressure ICU Medical Emergencies Delivery and Rescue Ambulance for Paitent Transfer
![[pics:title]](https://clwtrucksgroup.com/static/upload/image/20251112/1762960791952748.jpg)
![[pics:title]](https://clwtrucksgroup.com/static/upload/image/20251112/1762960791654338.jpg)
![[pics:title]](https://clwtrucksgroup.com/static/upload/image/20251112/1762960791645700.jpg)
![[pics:title]](https://clwtrucksgroup.com/static/upload/image/20251112/1762960797891776.png)
![[pics:title]](/static/upload/image/20251112/1762960791952748.jpg)
![[pics:title]](/static/upload/image/20251112/1762960791654338.jpg)
![[pics:title]](/static/upload/image/20251112/1762960791645700.jpg)
![[pics:title]](/static/upload/image/20251112/1762960797891776.png)
Item | Specification | Item | Specification |
General | |||
Truck Name | Ambulance | Overall Dimension (mm) | 5380×1920×2505 |
Truck Brand | FOTON | Gross / Curb Weight (kg) | 3400 / 2060 |
Truck Model | * | Approach / Departure Angle (°) | 16 / 17 |
Max. Speed (km/h) | 145 | Front / Rear Overhang (mm) | 1190 / 1080 |
Chassis | |||
Chassis Brand | FOTON | Chassis Model | * |
Wheel Base (mm) | 3100 | Leaf Spring | -/3+1 |
Traction System | 4 x 2 | Quantity of Axles | 2 |
Rated Passenger | 5~8 | Front / Rear Axle Load (kg) | 1630/1770 |
Transmission | 5 speed, manual | Front / Rear Wheel Tread (mm) | 1655 / 1650 |
Tyre Model | 195R15C | Quantity of Tyre | 4 |
Engine (Motor) | |||
Brand | FOTON | Type of Fuel | Diesel |
Model | ISF2.8s4129P | Displacement (ml) | 2780 |
Max. Power (Hp) | 130 | Emission Standard | Euro 5 |
tire | 215/75R16LT | ||
fuel tank | 200L | ||
Max driving speed(km/h) | 145 | ||
gross weight | 3700kg | ||
vehicle weight | 2650kg | ||
load capacity | 1050kg | ||
cab | seats requirement | ||
ford brand.with A/C in cabin | |||
Category | Item | Basic | Care | Premium |
Safety | ABS Brake System | ✓ | ✓ | ✓ |
Central Door Locking | ✓ | ✓ | ✓ | |
Driver Airbag | ✓ | ✓ | ✓ | |
Comfort | Power Windows | ✓ | ✓ | ✓ |
Remote Key | ✓ | ✓ | ✓ | |
Factory HVAC (Driver Cabin) | 2 sets | 2 sets | 2 sets | |
Triple Driver Seats | ✓ | ✓ | ✓ | |
Exterior | White Body + Red Reflective Strips | ✓ | ✓ | ✓ |
2/3 Frosted Medical Window Film | ✓ | ✓ | ✓ | |
Warning System | 100W Siren | ✓ | ✓ | ✓ |
Front 3-Eye Warning Light | ✓ | - | - | |
Rear Beveled Strobe Lights | 2 | 2 | 2 | |
Side Blue/White Strobe Lights | 6 | 4 | 4 | |
Electrical | Pure Sine Inverter (500W/1000W) | 500W | 500W | 1000W |
220V Sockets | 2 | 2 | 4 | |
12V Sockets | 1 | 1 | 2 | |
UV Disinfection Lamp | ✓ | ✓ | ✓ | |
Medical Cabin | Oxygen System (10L Cylinders x2) | ✓ | ✓ | ✓ |
Auto-loading Stretcher | ✓ | ✓ | ✓ | |
Sliding IV Pole | - | - | ✓ | |
Antibacterial Flooring (Blue) | ✓ | ✓ | ✓ |
Feature | Basic | Care | Premium |
Partition | Sliding Window Partition | PVC Partition | Polymer Hard Partition |
Storage | Left Medical Cabinet | Left Overhead Cabinet | Triple-layer Equipment Rack |
Oxygen System | 2 Ports + 1 Humidifier | 2 Ports | 2 Ports + Ventilator Port |
Seating | 1 Doctor + 2 Bench Seats | 1 Doctor + 2 Bench Seats | 3 Doctor Seats |
Ventilation | Bidirectional Fan | Bidirectional Fan | Electric Vent Fan |
Ceiling | Original Roof | Original Roof | Polymer Hard Top |
Item | Availability |
Negative Pressure System | Customizable |
Rear Step | ✓ |
Navigation + Rearview Camera | ✓ |
Stretcher Compartment | ✓ |
Scoop/Stair/Folding Stretchers | ✓ |
ABS Interior Trim | Care/Premium only |
Item | Description | Availability |
1 | Negative pressure system | Customizable |
2 | Rear-facing foldable seat | Optional |
3 | Stretcher compartment | Optional |
4 | Scoop/stair/folding stretchers | Optional |
5 | Middle/rear boarding steps | Optional |
6 | Three-tier equipment rack | (Care Model only) |
7 | Three-position adjustable stretcher | (Care Model only) |
Q1:Could your company manufacture products based on my requests?
A:Yes. With our R&D team, Chengli is specialized in engineering and making specialized vehicles. We can provide any products according to your demands, like the volume, painting, size, logo, the engine, and even the chassis.
Q2:What's your quality guanrantee?
A:We are a government-certified enterprise recognized by China's Ministry of Industry and Information Technology (MIIT), we have passed the ISO, CCC, SGS. We also hold export qualifications.
Q3. What are your main products?
A: Fire and emergency response vehicles, tanker trucks, refrigerated trucks, sanitation trucks, garbage truck, sprinkler truck, boom truck, wrecker trucks and so on. The annual production capacity is exceeding 8,000 units.
Q4. Are you a factory or trading company?
A: Chengli a the original factory, not a middleman or agent.
Q5. What are your terms of payment? What is your terms of delivery?
A: Generally speaking, 30% T/T deposit in advance. Terms are EXW, FOB, CFR, CIF.
Q6. How about your delivery time?
A: 10 to 25 days after receiving your advance payment. It also depends on the items and the quantity.
Q7. What is the price of your product?
A: We are the direct factory, so the price can be competitive. Visit our company and let us enjoy a tea to further talk about the price!
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9.What is the warranty period for your products?
A:The warranty period of export vehicles can be 12 months, based on the order.
Q10.Do your special vehicles comply with national/regional safety standards and emission regulations?
A:Yes.
Q11.What after-sales services do you provide?
A:We provide comprehensive after-sales services, including free parts, maintenance, repairs, technical support, and on-line tech support.
Q12:Can you make OEM or ODM?
A:Yes, we welcome the importer and wholesaler from worldwide for OEM and ODM business.
Q13:Where is your factory located? How can I visit there?
A:The address is at the intersection of Xingguang Road 1 and National Highway 316 in Zengdu Economic and Technological Development Zone, Suizhou City, Hubei Province, China. We will pick you up at Wuhan Airport.
