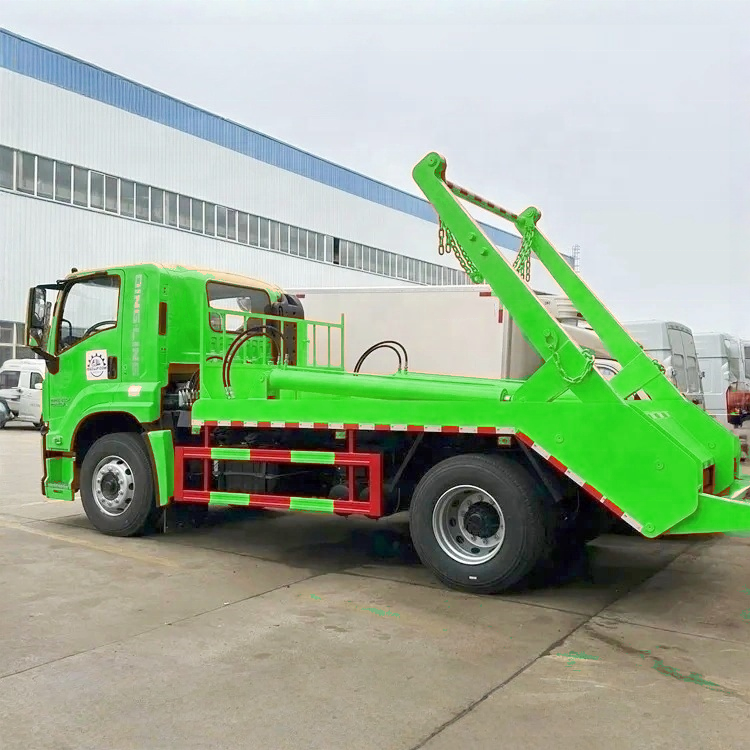

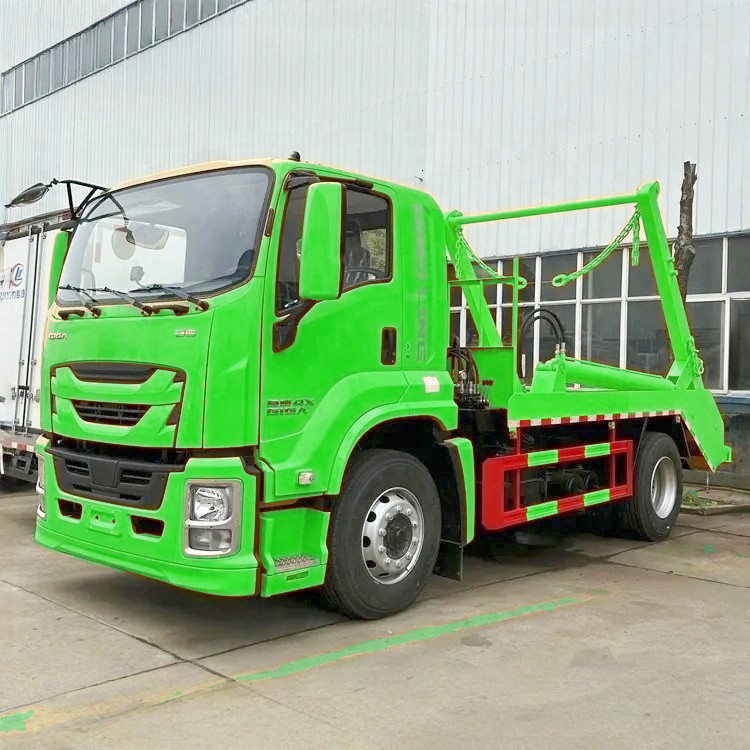

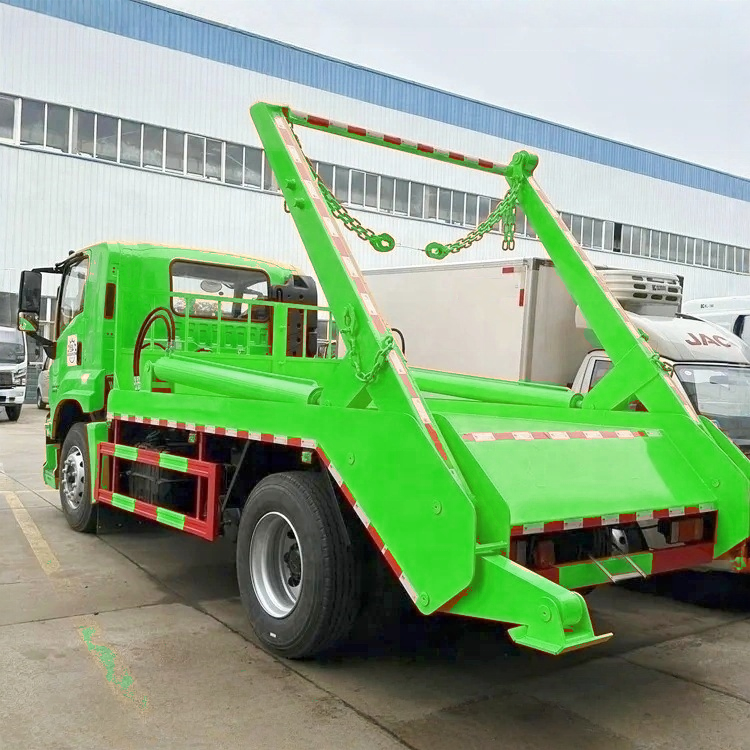

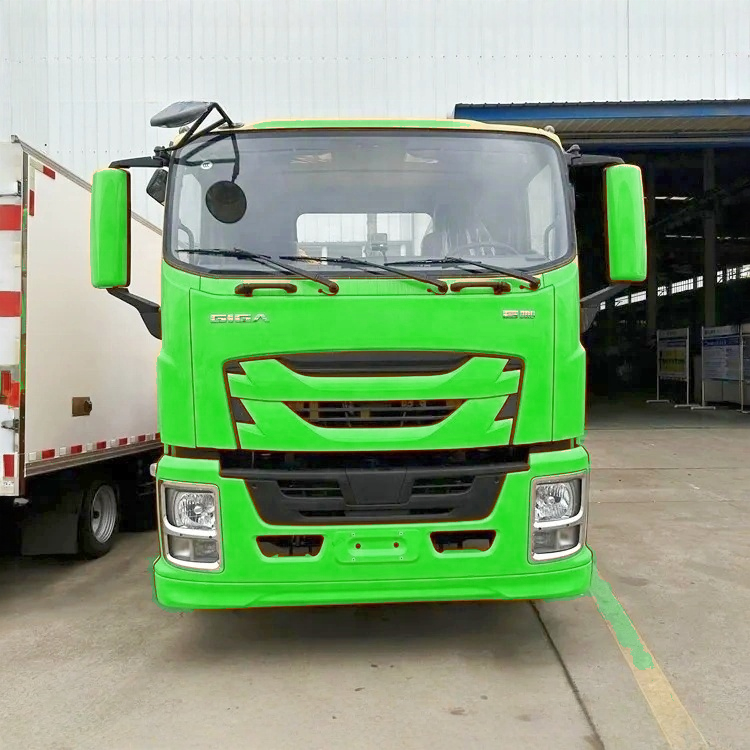

Isuzu GIGA 4X2 10CBM 12cbm Swing Arm Garbage Collection Truck Skip Loader Garbage Truck New
![[pics:title]](https://clwtrucksgroup.com/static/upload/image/20251115/1763198528582249.png)
![[pics:title]](https://clwtrucksgroup.com/static/upload/image/20251115/1763198526955501.png)
![[pics:title]](https://clwtrucksgroup.com/static/upload/image/20251115/1763198532406863.png)
![[pics:title]](https://clwtrucksgroup.com/static/upload/image/20251115/1763198533947892.png)
![[pics:title]](/static/upload/image/20251115/1763198528582249.png)
![[pics:title]](/static/upload/image/20251115/1763198526955501.png)
![[pics:title]](/static/upload/image/20251115/1763198532406863.png)
![[pics:title]](/static/upload/image/20251115/1763198533947892.png)
Vehicle name | Isuzu skip loader/swing arm garbage truck | |
Cabin | Driving type 4x2 | |
Single, with A/C. Left/Right Hand Drive | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8600*2500*3500 |
Wheel base (mm) | 5000 | |
Wheel track (front/rear) (mm) | 1965/1860 | |
Approach/Departure angle(°) | 18/20 | |
Weight | Gross Weight | 18000 kg |
Curb Weight | 8600kg | |
Loading Capacity | 15000 kg | |
Front axles loading capacity | 6 ton | |
Rear axles loading capacity | 12ton | |
Max. driving speed(km/h) | 90 | |
Engine | Brand | Isuzu |
Type | 4/6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power(HP) | 205/240 HP | |
Emission standard | Euro 2/3/4//5 | |
Gearbox | FAST, 5/6/8 forwards &1 reverse | |
Steering Gear | Hydraulic steering with power assistance | |
Fuel tank (L) | 100 /200/300L | |
Tire | 7.00R16/9.00 tires with one spare, totally 7 pcs. | |
Swing arm system with cargo box | ||
· Garbage cargo box :5-14CBM , Carbon steel material , underground type or aboveground type can be optional. | ||
· PTO motivated hydraulic system, two hydraulic cylinders with lifting arm and two hydraulic cylinders with landing leg | ||
· Swing arm maximum pivot angle 145; hoisting time 30s; Unloading time 50s. | ||
Q1:Could your company manufacture products based on my requests?
A:Yes. With our R&D team, Chengli is specialized in engineering and making specialized vehicles. We can provide any products according to your demands, like the volume, painting, size, logo, the engine, and even the chassis.
Q2:What's your quality guanrantee?
A:We are a government-certified enterprise recognized by China's Ministry of Industry and Information Technology (MIIT), we have passed the ISO, CCC, SGS. We also hold export qualifications.
Q3. What are your main products?
A: Fire and emergency response vehicles, tanker trucks, refrigerated trucks, sanitation trucks, garbage truck, sprinkler truck, boom truck, wrecker trucks and so on. The annual production capacity is exceeding 8,000 units.
Q4. Are you a factory or trading company?
A: Chengli a the original factory, not a middleman or agent.
Q5. What are your terms of payment? What is your terms of delivery?
A: Generally speaking, 30% T/T deposit in advance. Terms are EXW, FOB, CFR, CIF.
Q6. How about your delivery time?
A: 10 to 25 days after receiving your advance payment. It also depends on the items and the quantity.
Q7. What is the price of your product?
A: We are the direct factory, so the price can be competitive. Visit our company and let us enjoy a tea to further talk about the price!
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9.What is the warranty period for your products?
A:The warranty period of export vehicles can be 12 months, based on the order.
Q10.Do your special vehicles comply with national/regional safety standards and emission regulations?
A:Yes.
Q11.What after-sales services do you provide?
A:We provide comprehensive after-sales services, including free parts, maintenance, repairs, technical support, and on-line tech support.
Q12:Can you make OEM or ODM?
A:Yes, we welcome the importer and wholesaler from worldwide for OEM and ODM business.
Q13:Where is your factory located? How can I visit there?
A:The address is at the intersection of Xingguang Road 1 and National Highway 316 in Zengdu Economic and Technological Development Zone, Suizhou City, Hubei Province, China. We will pick you up at Wuhan Airport.
